The Object Monitoring Template defines the type of performance data to be recorded for a technical object. It is a prerequisite for Performance Characteristic Entry and must be set up before being assigned to a technical object.

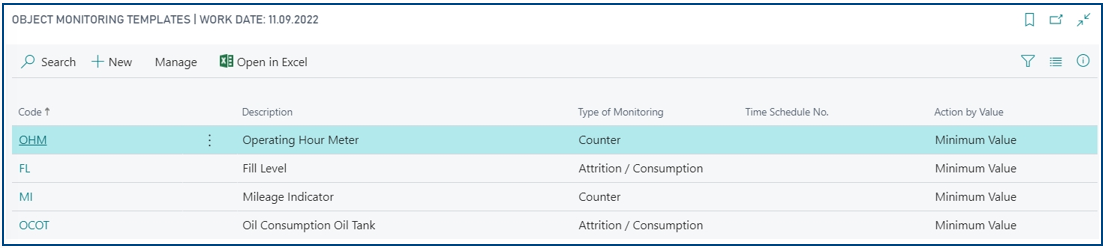

Opening the List View
Use the "Tell Me" search (Alt+Q) for Object Monitoring Templates to open the list view.
Creating a New Template

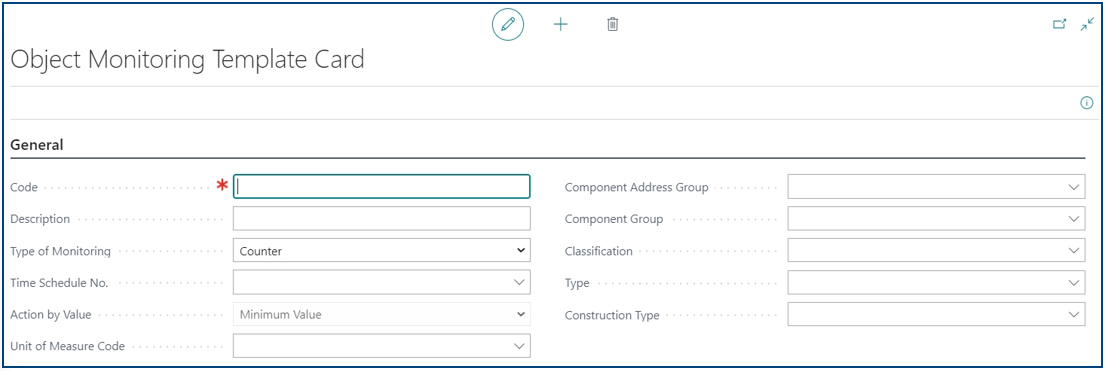

Click New to create a new record and open the card view.
- In the Code field, enter the code for the Object Monitoring Template (max. 10 characters).
- In the Description field, enter a description (max. 50 characters).
In the Monitoring Type field, define the type of data to be used for monitoring:
- Counter – e.g. operating hours, mileage, switching cycles
- Threshold/Range – e.g. temperature ranges, conditions (0 / 1)
- Attrition/Consumption – e.g. oil consumption
Optional Fields
The following fields can be filled in additionally:
| Field Name | Description / Information |
| Time Schedule No. | Specify a time schedule |
| Action at Value | Specify an action for range-based monitoring |
| Unit of Measure Code | Define the unit of measure |
| Component Address Group | Filter for assigning a Component Address Group |
| Component Group | Filter for assigning a Component Group |
| Class | Filter for assigning a Class |
| Type | Filter for assigning a Type |
| Construction Type | Filter for assigning a Construction Type |
| Actual Value Label | Label for the Actual Value field, e.g. in the Technical Component |
