Creating a Time Schedule with Object Reference – MAIN-TOOL Help Center

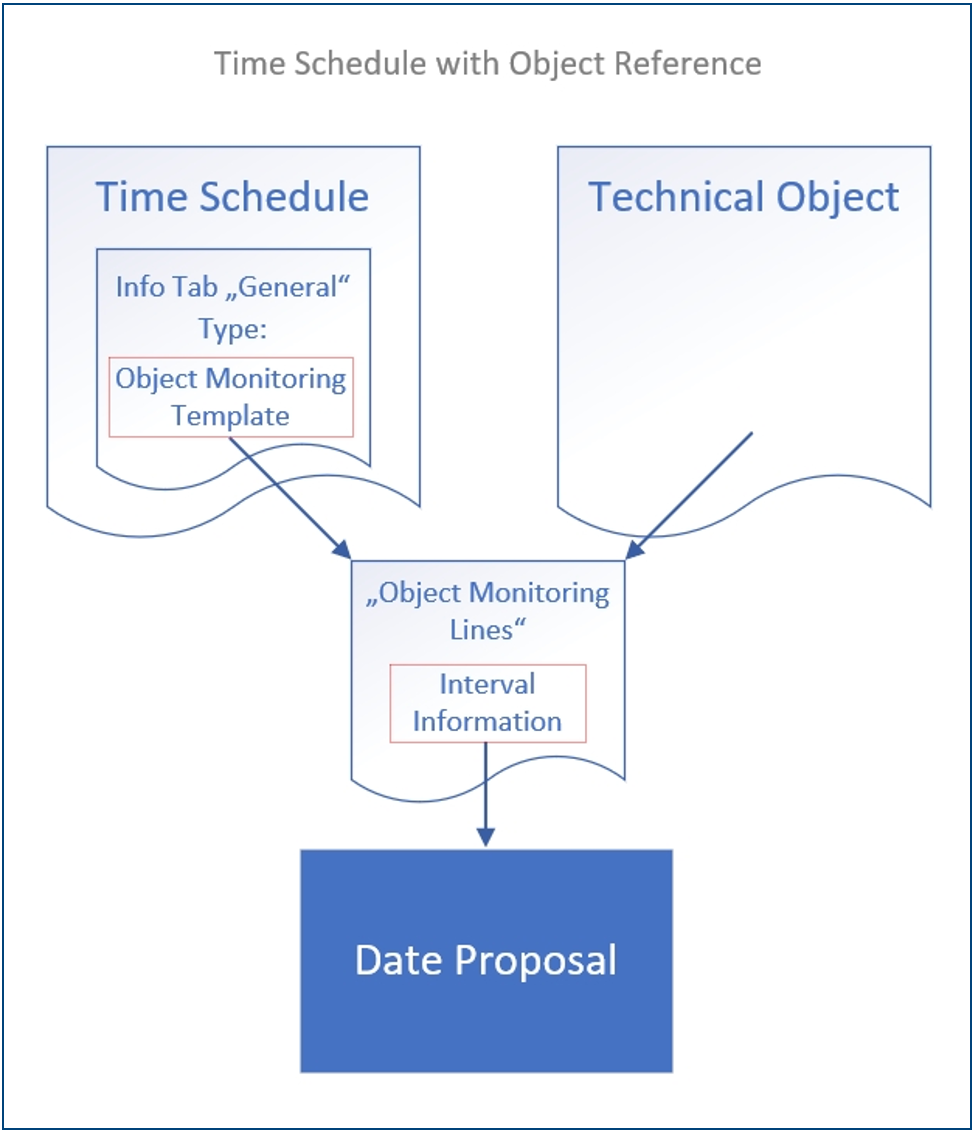

The Time Schedule with Object Reference is usually used for recurring measures on technical objects, such as "a pressure vessel" or "all electrical equipment in production".

2024-12-16 17_35_08-APM04 Manual - Creating a Time Schedule with Object Reference BC18 - Geschützt.png

Opening a new Time Schedule

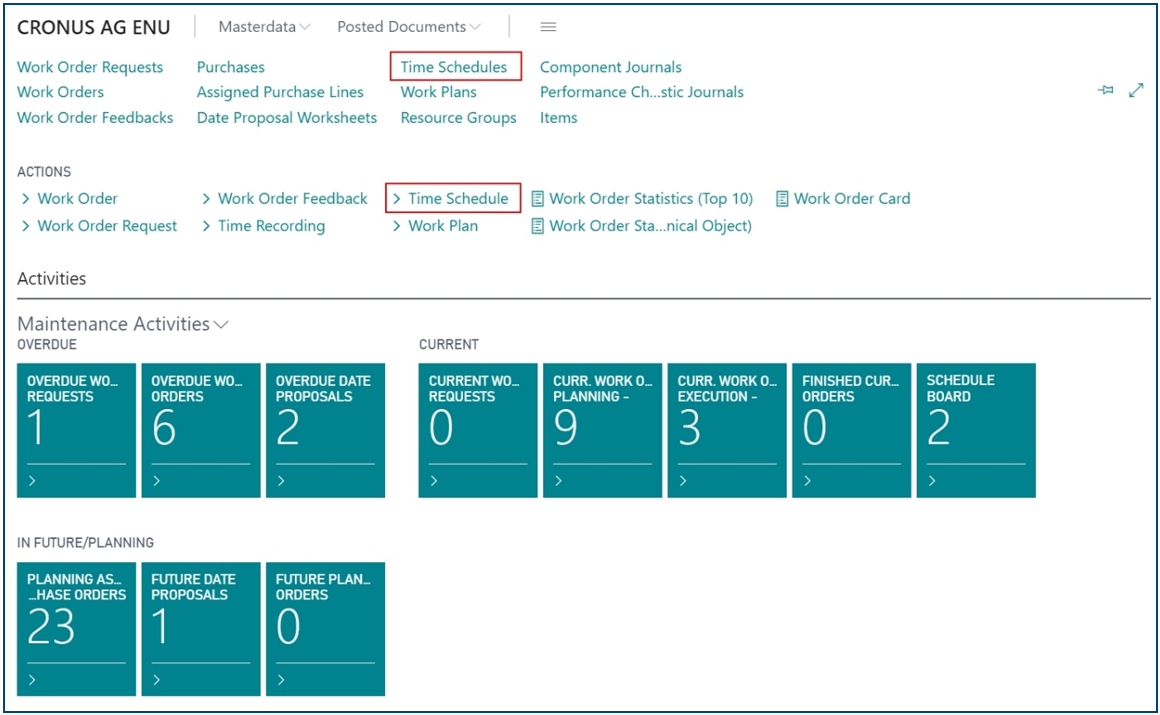

Clicking on „Time Schedule“ on the „Homepage“ below „Actions“:

2024-12-16 17_35_46-APM04 Manual - Creating a Time Schedule with Object Reference BC18 - Geschützt.png

Alternative:

After displaying the existing Time Schedules by clicking on „Time Schedules“, a new Time Schedule can then be opened by clicking in „New“.

Details Info Tab General

With „Enter“, „Tab“ or clicking into another field but „No.“, a new Time Schedule Number is automatically assigned to the new Time Schedule.
The fields are to be filled as completely as possible, especially the description fields.

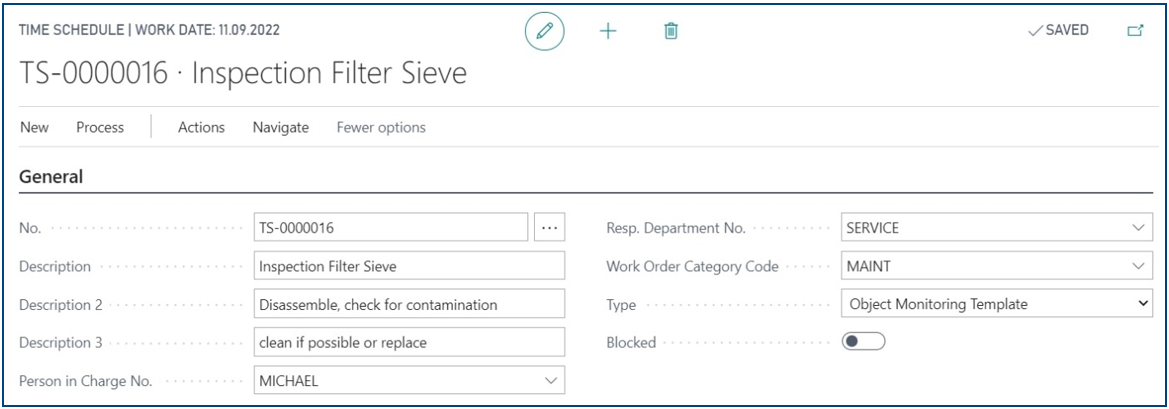

At „Type“ „Object Monitoring Template“ must be selected, as a Time Schedule with Object Reference is to be created.

2024-12-16 17_36_27-APM04 Manual - Creating a Time Schedule with Object Reference BC18 - Geschützt.png

Details Info Tab Lines

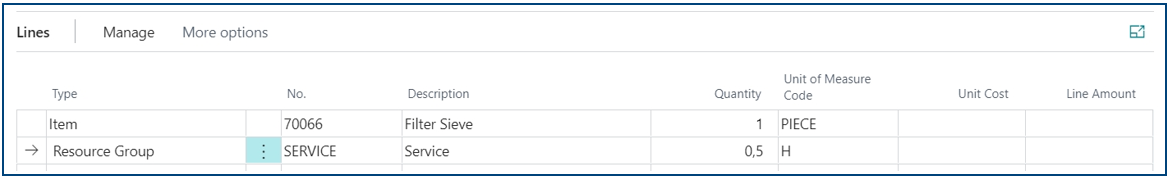

Here, required Items, External Services, Resources or Resource Groups are preset.

2024-12-16 17_36_56-APM04 Manual - Creating a Time Schedule with Object Reference BC18 - Geschützt.png

Details Info Tab Activity

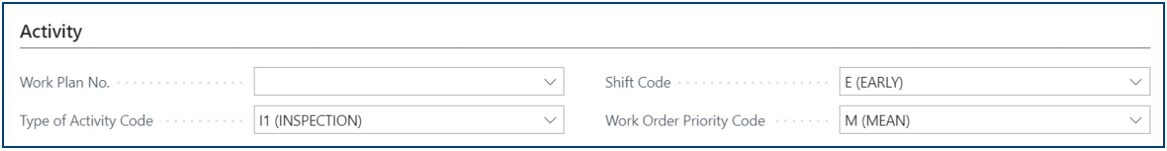

It´s recommended to fill the field „Type of Activity code“ for evaluation purposes.

2024-12-16 17_37_18-APM04 Manual - Creating a Time Schedule with Object Reference BC18 - Geschützt.png

Details Info Tab Interval

The “Interval” tab cannot be filled in because interval information is taken from the object monitoring line of the technical object.

Details Info Tab Accounting

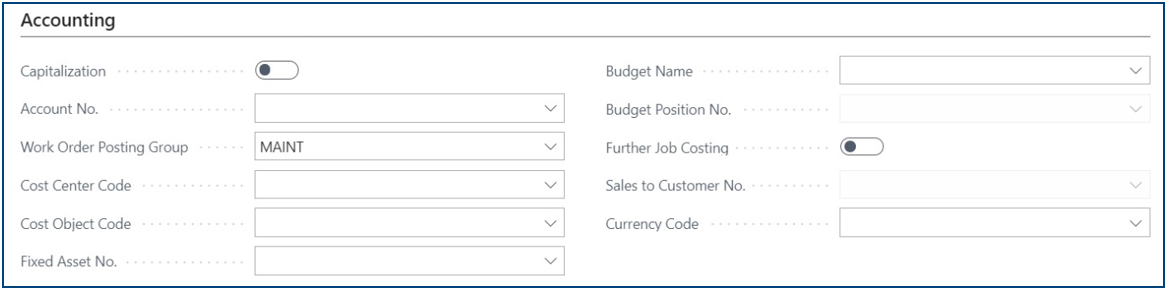

The field „Work Order Posting Group“ is either preset or must be selected for integration with accounting.

2024-12-16 17_37_47-APM04 Manual - Creating a Time Schedule with Object Reference BC18 - Geschützt.png

Details Info Tab Appointments

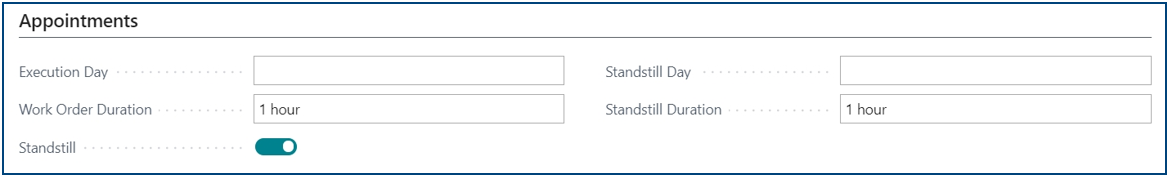

If it is already determined that the activity will require a standstill, this can already be indicated here accordingly.

2024-12-16 17_38_15-APM04 Manual - Creating a Time Schedule with Object Reference BC18 - Geschützt.png

Adding Checklists, Texts or Comments

In the Time Schedule, „Comments” as well as Checklists, Instructions and Work Notices can be added by clicking on „More Options“, „Navigate“ „Time Schedule“ and then „Texts“.

The articles in the section Chekclists explain the procedure and are therefore recommended reading if checklists, instructions and work notices are to be used as a very practical part of Time Schedules.

Defining Time Schedule Object Monitoring Lines

As can be seen from the „Time Schedule Object Monitoring“ Info Box, no Object Monitoring Line is linked to this Time Schedule yet.

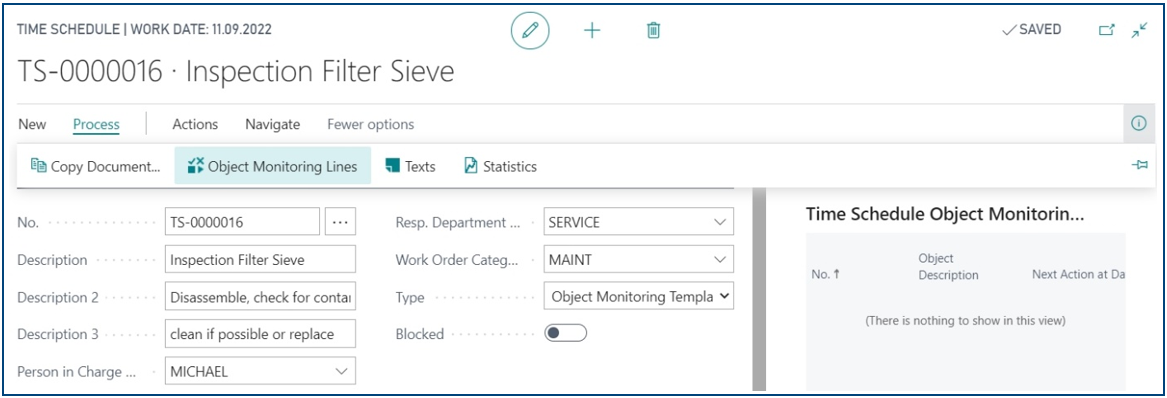

The linking of the Time Schedule with the technical object can be defined by clicking on „Process“ and „Object Monitoring Line“.

2024-12-16 17_39_50-APM04 Manual - Creating a Time Schedule with Object Reference BC18 - Geschützt.png

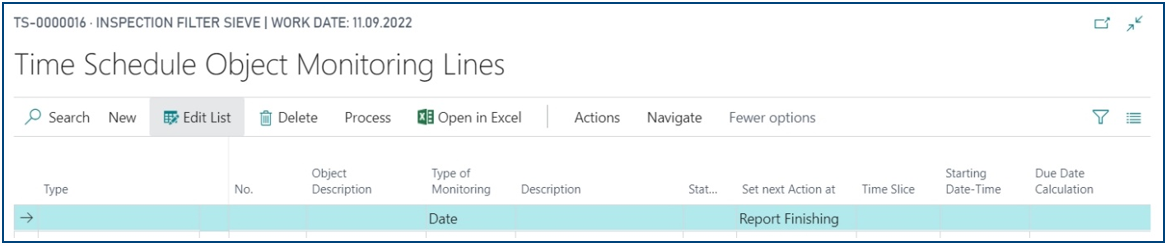

The line view to edit the Time Schedule Object Monitoring Line is opened:

2024-12-16 17_40_12-APM04 Manual - Creating a Time Schedule with Object Reference BC18 - Geschützt.png

The Entry of the following cell information is made from left to right:

Field Name	Description / Information
Type	The Technical Object, which is to be linked to the Time Schedule, must be selected. The Options are: Component Adresse Mounting Position Technical Component
No.	Once the Type is selected, the Technical Object can be selected in the Drill-Down-Menu
*Object Description*	If No. is selected, update with F5: the field will be filled automatically
*Type of Monitoring*	Informative only
*Description*	Will be copied from Time Schedule automatically and can be changed.
Status	If the technical object has been shut down, sold or scrapped, for example, the "Deleted" status can be used. In case of temporary inactivity, the status "Blocked" can be used.
Set next Action at	The Options are: “Opening” (Date of work order creation is relevant for interval calculation) “Execution” (Interval until next Deadline is calculated from status change to „Execution“) “Report Finishing” (The interval until next deadline is recalculated only after the work order has been reported as finished) „Completing“ (The interval until next deadline is recalculated only after the work order has been completed) „Fixed Date“ (useful for dates, that should always be proposed on the same date, e.g. TÜV, test dates)
Time Slice	Interval between appointments, e.g. 1M (1 Month), 1W (1 Week), …
Starting Date-Time	Selection/Entry of the Starting Date (Day on which the activity last took place, e.g. "t" for today). If there is no real date here, in order to get a future date proposal, a calculated date in the past must be entered based on the selected time interval (formula: "desired due date minus time interval = start day to be entered").
*Due Date Calculation*	Informative only ("Overdue" formula e.g. 1M (1 Month), …)
*New Date Possible*	Informative only (Link to „Date Handlings“)
*Last Action at Date-Time*	Informative only (Indication of the calculated last due Appointment)
*Next Action at Date-Time*	Informative only (Indication of the calculated next due Appointment) The result of the calculation can be checked here!
*Calendar Week*	Informative only (Calendar week indication of next due Appointment)
*Calendar Year*	Informative only (Calendar year indication of next due Appointment)

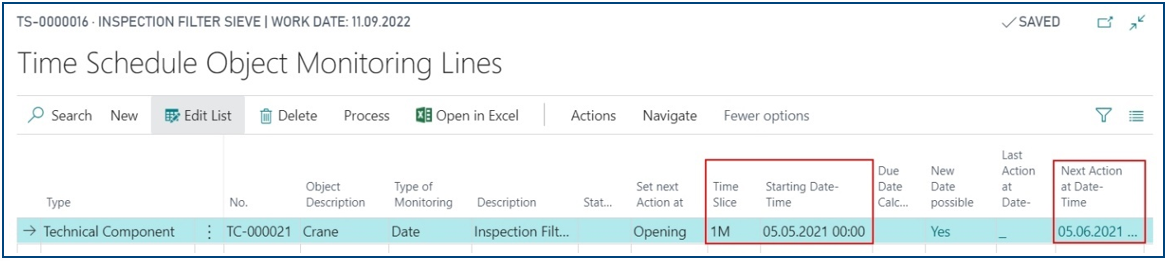

If the check of the calculated date by means of the field „Next Action at Date-Time“ has shown, that the date calculation is correct, see following Figure, the entry of the Time Schedule Monitoring Line for the technical object is completed.

2024-12-16 17_43_36-APM04 Manual - Creating a Time Schedule with Object Reference BC18 - Geschützt.png

If further technical components are to be linked to the Time Schedule, they can easily be added with further Time Schedule Object Monitoring Lines (see Chap. 8 and Figure 9: Time Schedule Object Monitoring Lines).

Creation of a Time Schedule with Object Reference finished

Summary:

All relevant Info Tabs are filled in.
In the created Time Schedule „Object Monitoring Template“ was entered in the “Type” field.

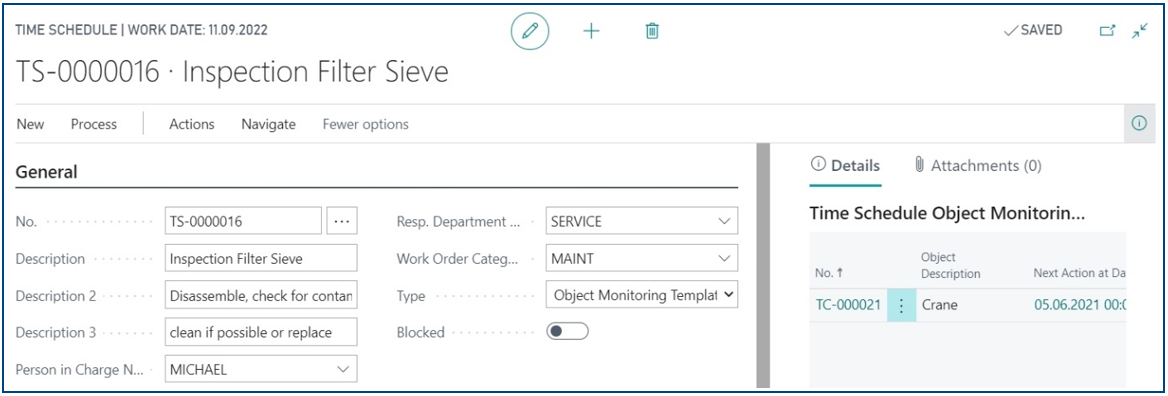

The Info Box „Time Schedule Object Monitoring Lines“ contains the Due Date Information.

2024-12-16 17_44_10-APM04 Manual - Creating a Time Schedule with Object Reference BC18 - Geschützt.png

Additional Information

MAIN-TOOL assumes a 24/7 operation.
Individual Time Slices are possible for several Object Monitoring Lines.
When creating Object Monitoring Lines, the „Type“ field must first be filled in so that the Object Monitoring Line can be assigned to the Technical Object in question.
