Mobile: Work - AdHoc Work Order

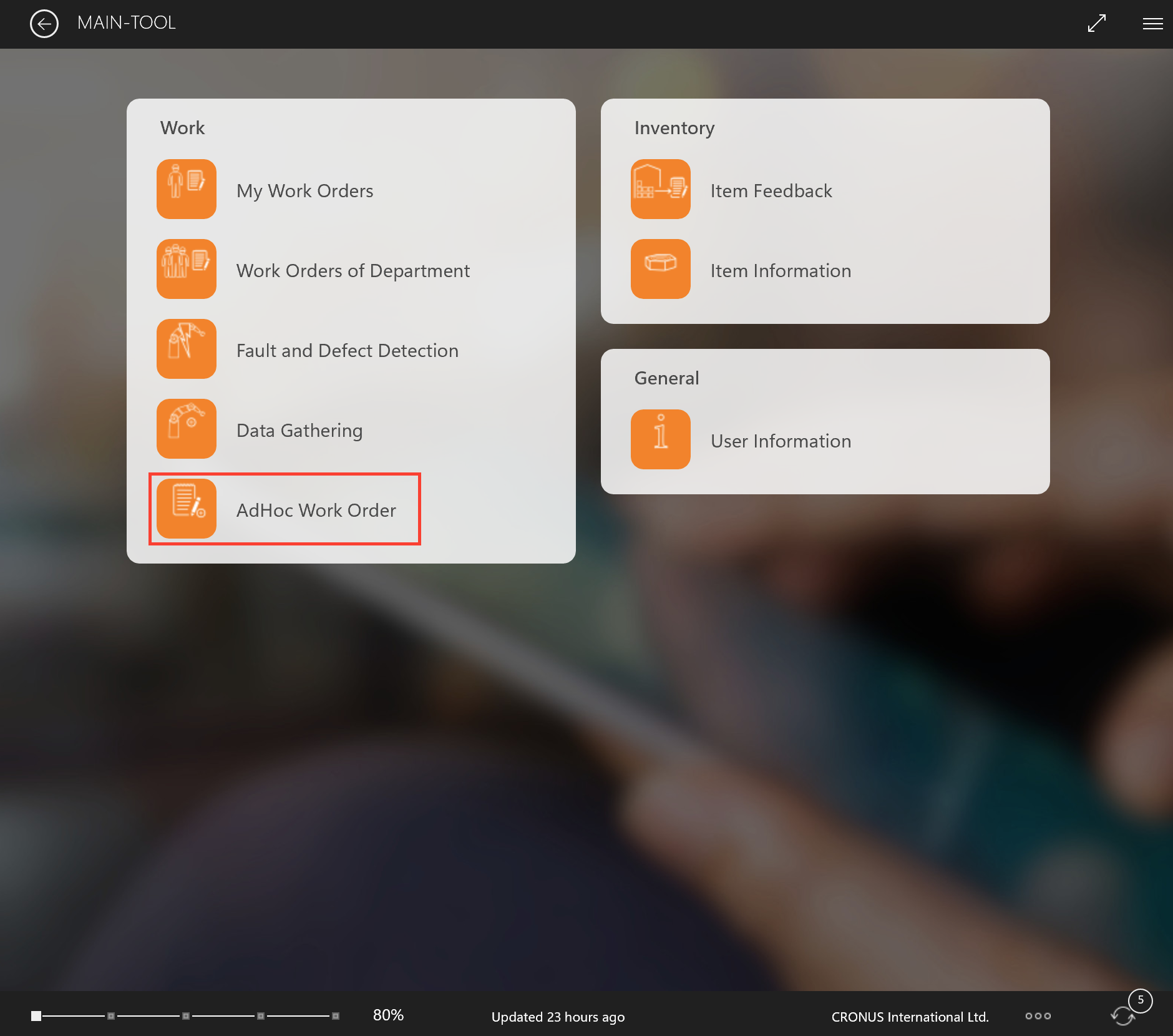

The "AdHoc Work Order" tile in the work area of the MAIN-TOOL mobile app enables maintenance orders that occur unplanned and require immediate processing to be documented in MAIN-TOOL.

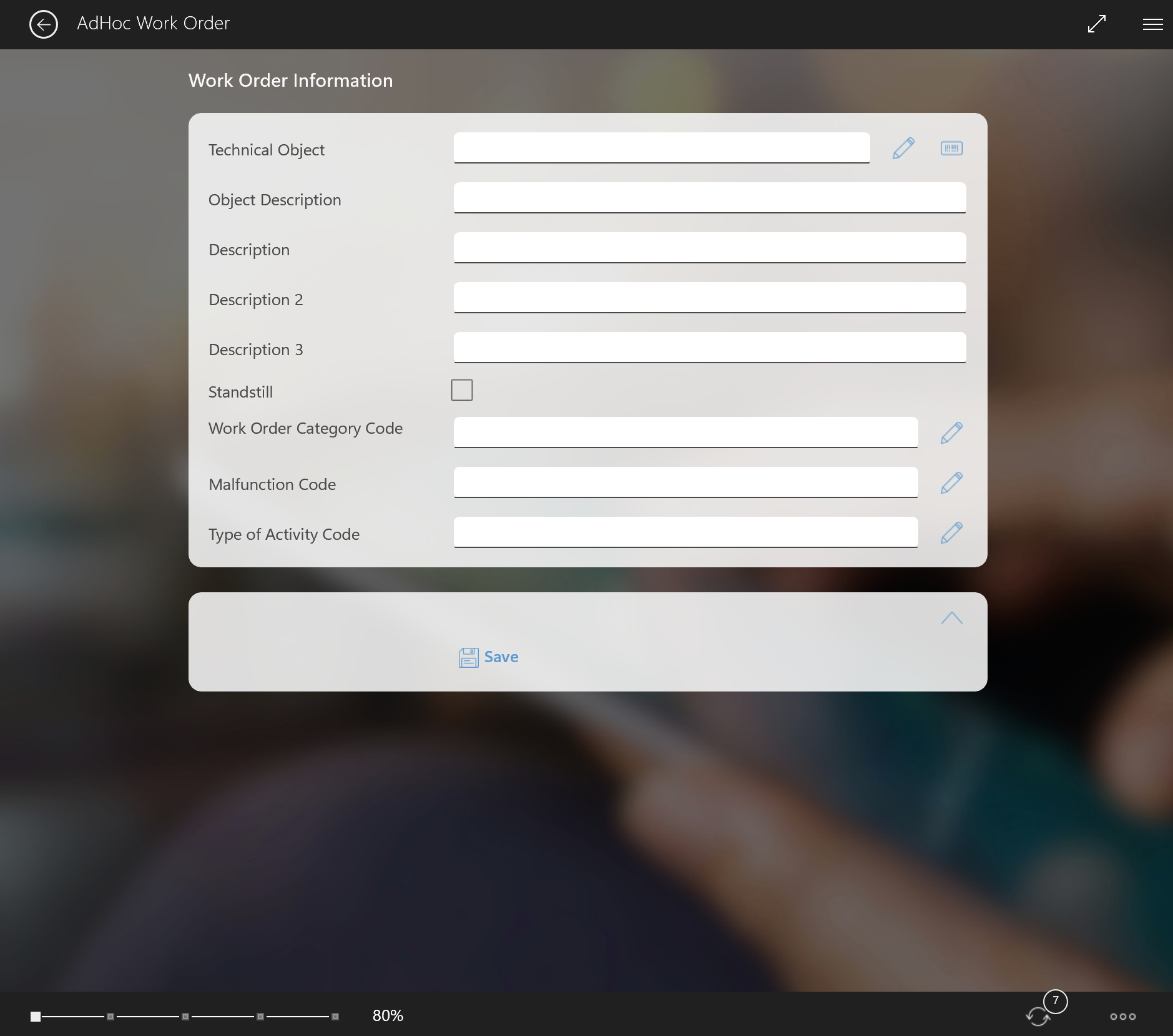

Mandatory fields of the AdHoc Work Order are:

• The selection of a "Technical Object" (via manual entry, search or barcode function) for which the "Department Code" and "Project Code" fields are filled.
• At least one description in "Description", "Description 2" or "Description 3"
• The selection of an "Work Order Category Code"

Optional fields are

• Tick for „Standstill“
• „Malfunction Code“ und
• „Type of Activity Code“

The last two fields can be pre-assigned if the work order category has been set up accordingly, but can be overwritten by clicking on the pencil icon.

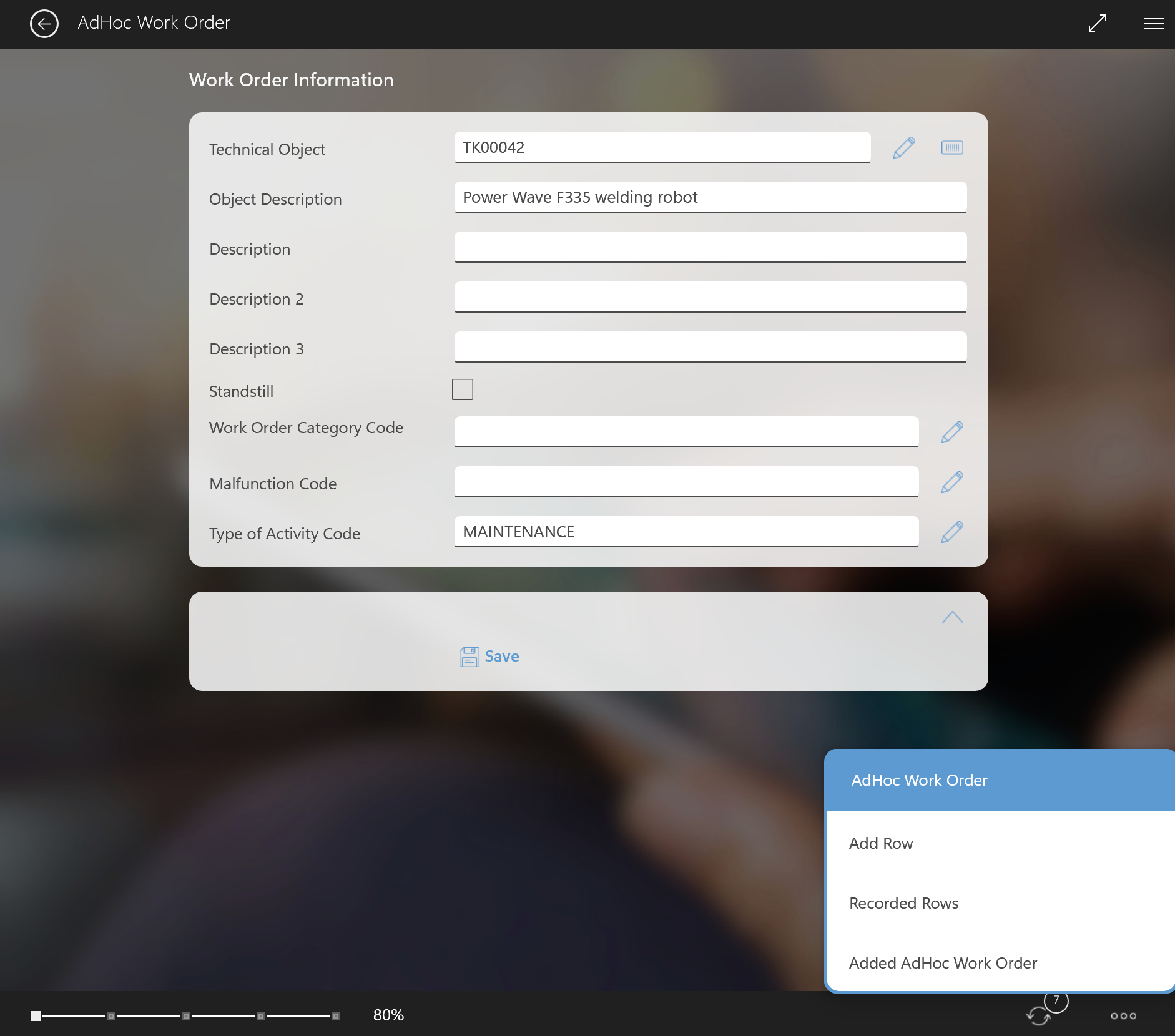

By clicking on the 3 horizontal dots in the footer of the AdHoc Work Order, it is possible to

• "Add Rows" to document the item and/or resource consumption,
• view and edit the "Recorded Rows",
• view and edit "Added AdHoc Work Orders".

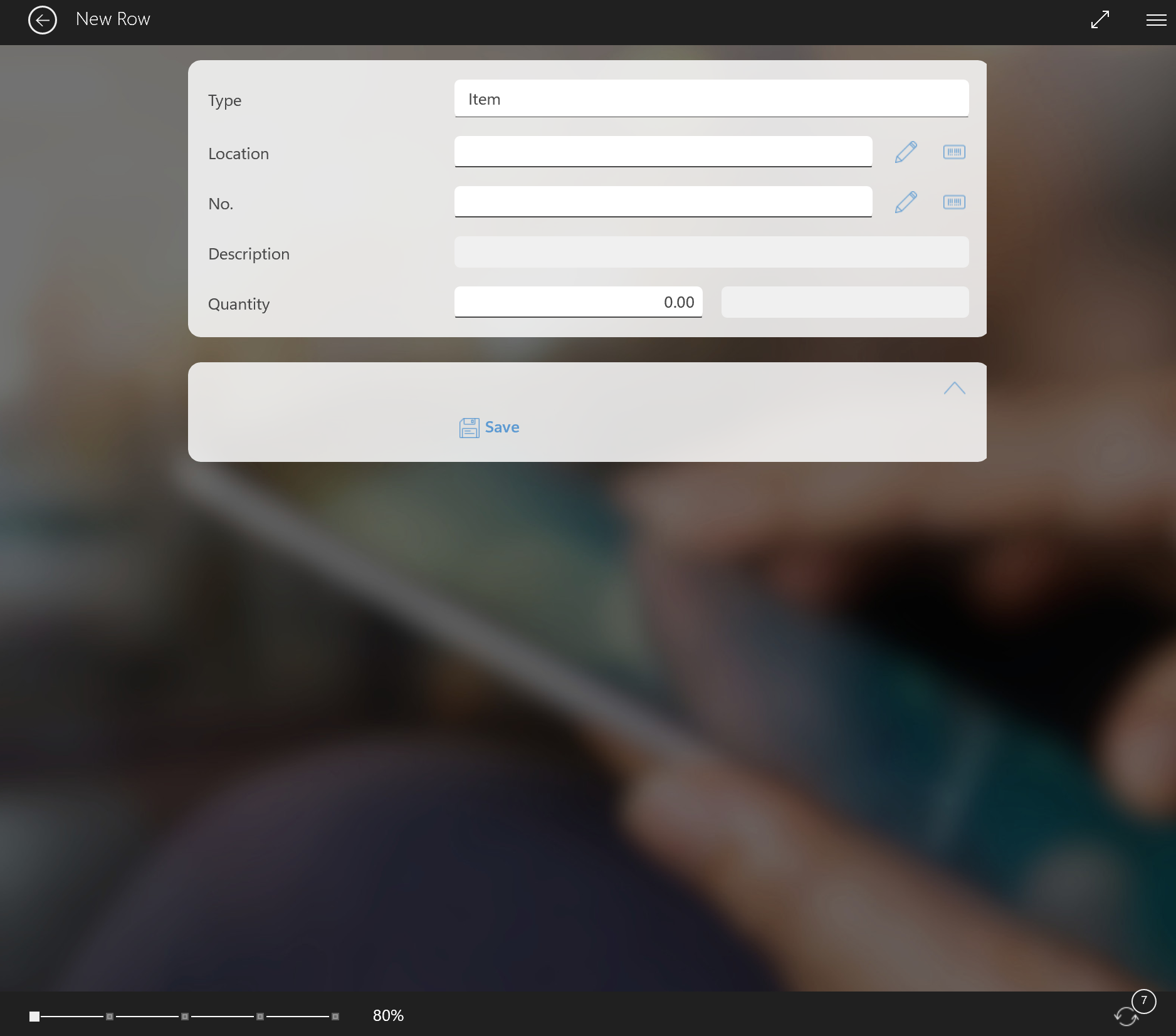

Adding Item Feedback in the AdHoc Work Order

After clicking on "Add Row", "Item" is selected in the "Type" field and then, on creating a Feedback, the withdrawal of an Item number from a storage location is saved with a quantity specification. The field can be edited using the pencil icon or, where available, by scanning a barcode (barcode icon).

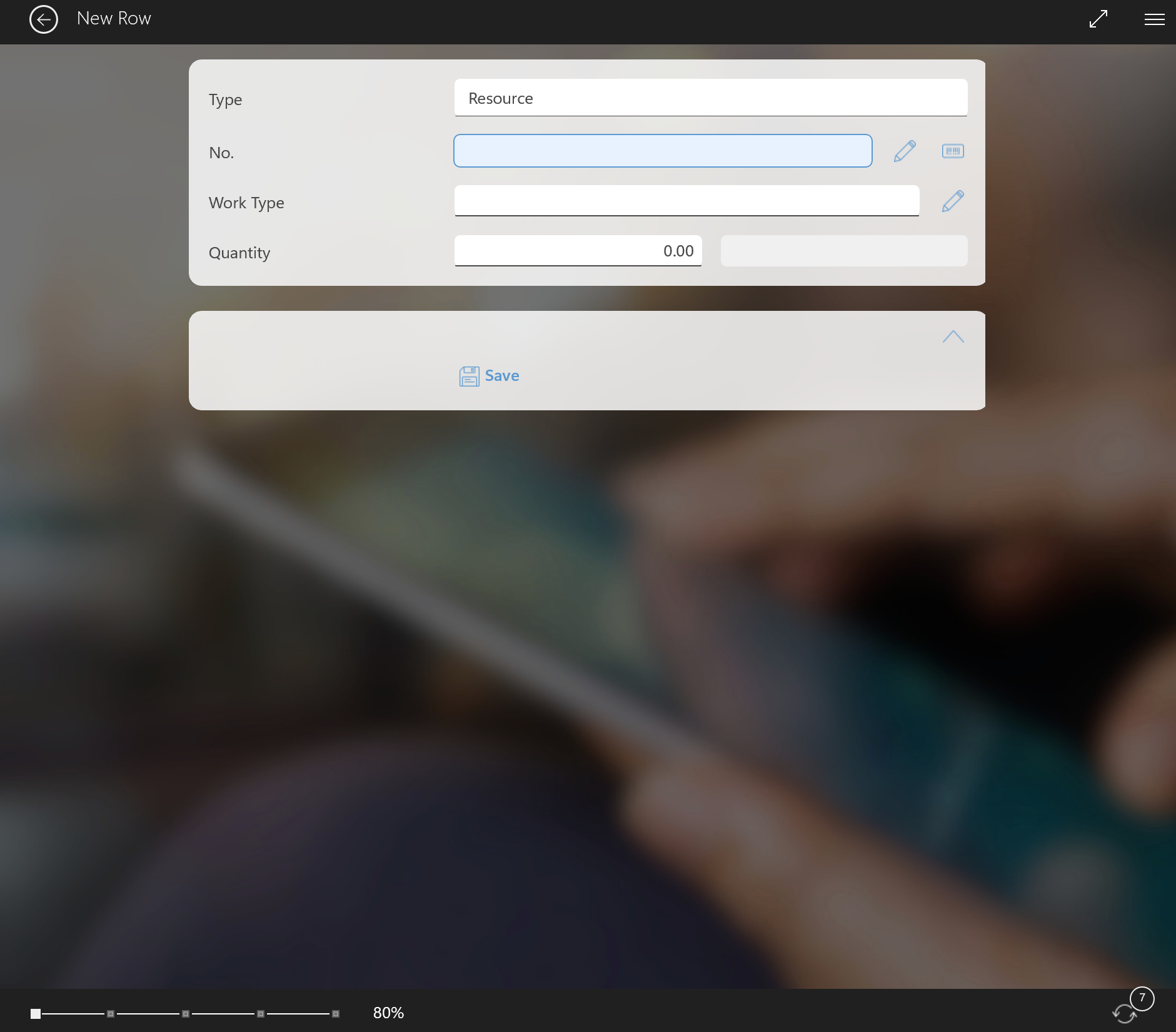

Adding Resource Feedback in the AdHoc Work Order

After clicking on "Add row" or saving a previously entered row, "Resource" is selected in the "Type" field and then the number of the resource, the selection of the work type and an indication of the required resource units of measure are saved on creating a feedback. The field can be edited using the pencil icon or, where available, by scanning a barcode (barcode icon).

View recorded feedback lines

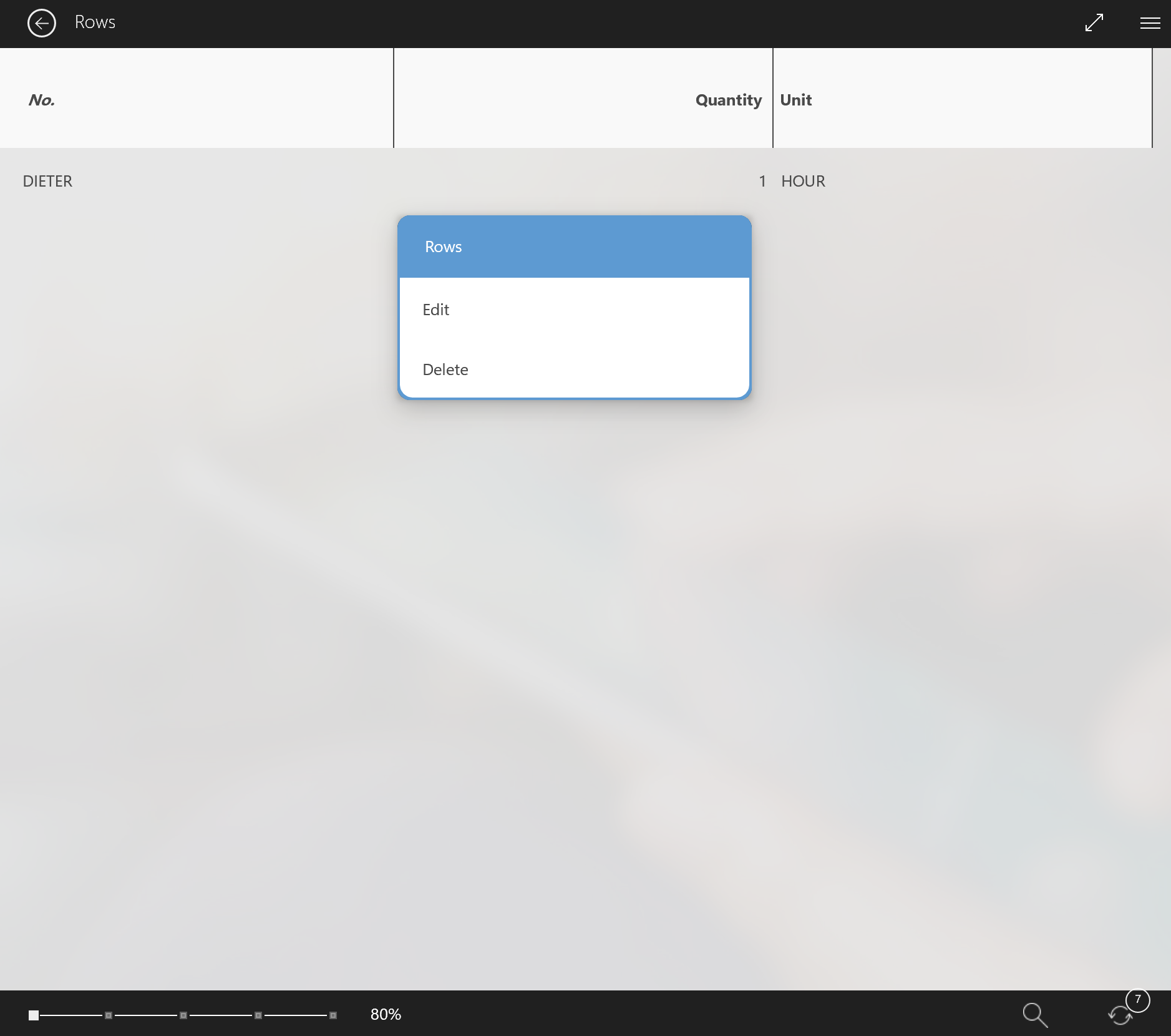

If feedback rows have been entered for an AdHoc Work Order, they can be viewed in the AdHoc Work Order by clicking on "Recorded rows" and, after selecting a row, edited or deleted by clicking on it.

Click on "Edit" to open the corresponding input screen, which can be edited.

Viewing created ad hoc orders

If AdHoc Work Orders have been created and saved, they can be viewed, edited or deleted until synchronization by clicking on "Added AdHoc Work Orders".

AdHoc Work Orders after synchronization

After synchronization, an AdHoc Work Order is saved in the list of orders in MAIN-TOOL and automatically set to the status "In Progress". In addition, the person in charge is entered in the work order, which is stored in the user's "Mobile Setup".

This means that after synchronization, the person in charge will see the AdHoc Work Order in the "My Work Orders" list.
