Creating a Purchase Order

Entries in the Lines of a Work Order

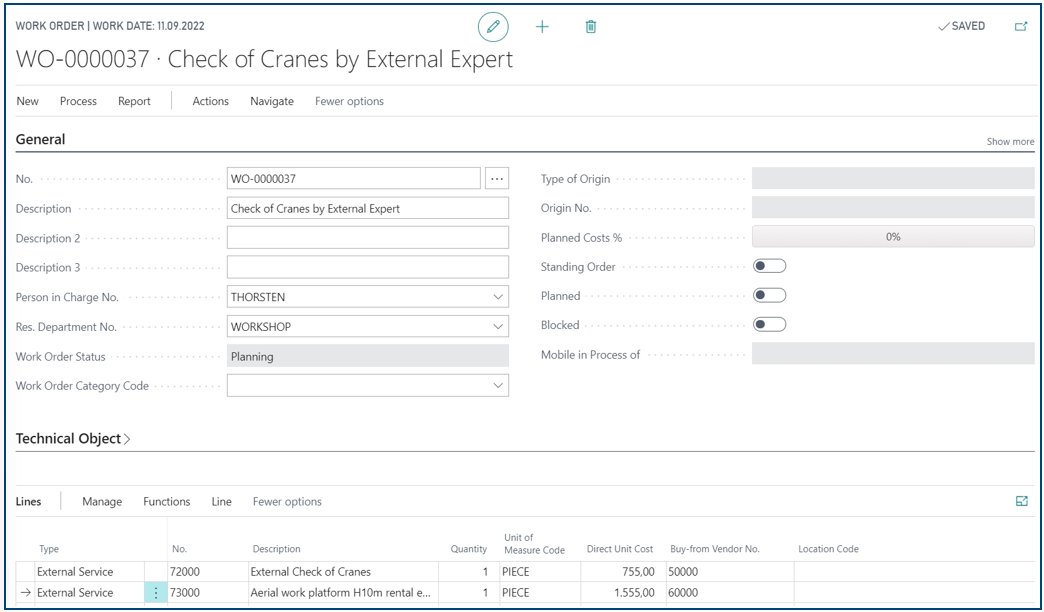

In order to create one or more separate purchase orders from a work order, the following columns in the “Lines” of a Work Order are relevant:

No.
Quantity
Unit of Measure Code
Buy-from Vendor No. (optionally)
Direct Unit Cost (e.g. estimated, required, if “Create Document if Direct Unit Cost = 0” is deactivated for the field “Order” at “Work Order Management Setup” in the “Purchase” tab.)

2024-11-26 16_50_54-WOM16 Manual - Creating a Purchase Order from a Work Order BC18 - Geschützte A.png

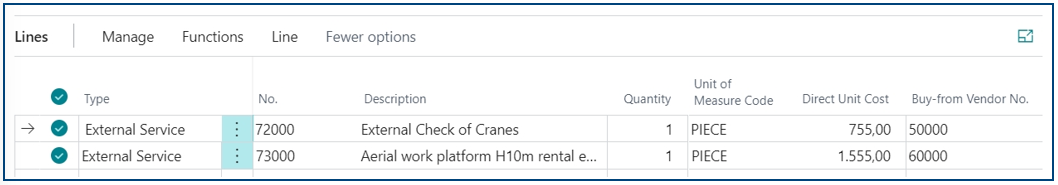

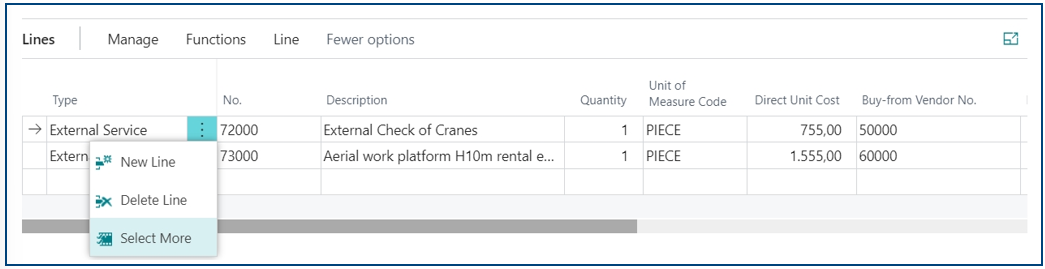

It is recommended to mark the row(s) for which one or more quotations are to be requested in the Lines tab. For multiple marking, the “Select More” option is available by clicking on the 3 vertical dots after the “Types” column.

2024-11-26 16_51_36-WOM16 Manual - Creating a Purchase Order from a Work Order BC18 - Geschützte A.png

2024-11-26 16_51_53-WOM16 Manual - Creating a Purchase Order from a Work Order BC18 - Geschützte A.png

“Create Order” Function

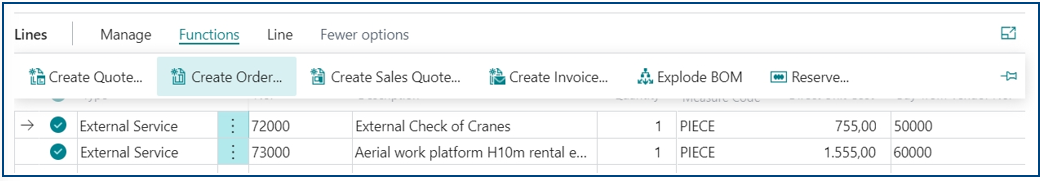

By clicking on “Functions”, then “Create Order” a Purchase Order Document can be created.

2024-11-26 16_52_31-WOM16 Manual - Creating a Purchase Order from a Work Order BC18 - Geschützte A.png

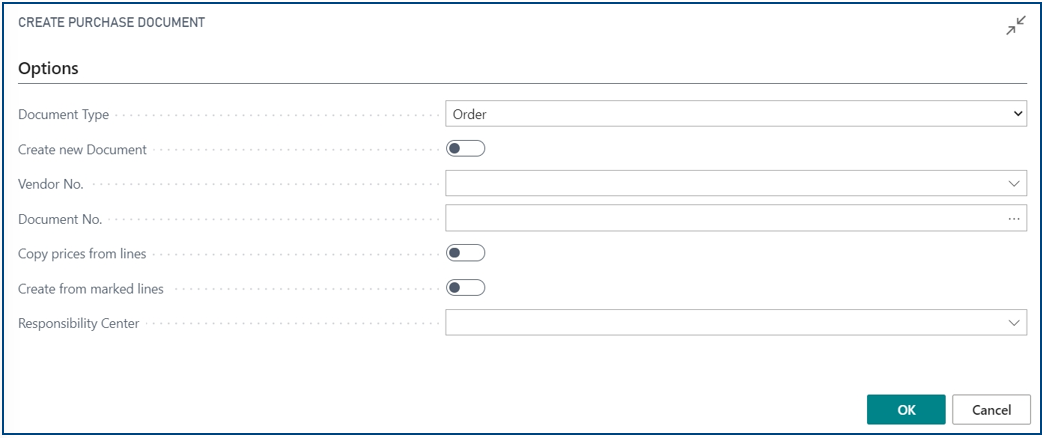

The “Create Purchase Document” query is opened:

2024-11-26 16_53_04-WOM16 Manual - Creating a Purchase Order from a Work Order BC18 - Geschützte A.png

Analogous to the creation of orders, a Quotation could also be generated here.

The individual fields of the query are explained in the following table:

Field Name	Description / Information
Document Type	The Options are: Quote Order
Create new Document	Sliding field (on/off). „On“ causes, that a new purchase order is created.
Vendor No.	Selection of a Vendor required, unless an existing “Document No.” will be selected in the following field.
Document No.	A Document No. is required. For a new document, the field can be left blank if a predefined number series is selected.
No. Series	Field only available or editable if a new document is to be created to select a number series or if no document number has been entered.
Transfer Price from Work Order Line	Sliding field (on/off). “On” causes prices to be transferred from work order lines. “Off” causes the “Price Determination Process” activation
Create Quote from marked lines	Sliding field (on/off). „On“ causes only marked lines to be taken into account. “Off” causes to create the document based on all planned items and external services of the work order lines.
Responsibility Center	The document can be assigned to a Responsibility Center

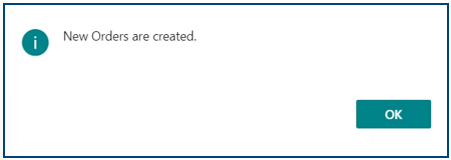

After entry of all required information, the creation of the purchase document can be finished with “OK”. If the required information has been found in the Lines, the Creation is confirmed with following message:

2024-11-26 16_53_52-WOM16 Manual - Creating a Purchase Order from a Work Order BC18 - Geschützte A.png

Work Order History Info Box

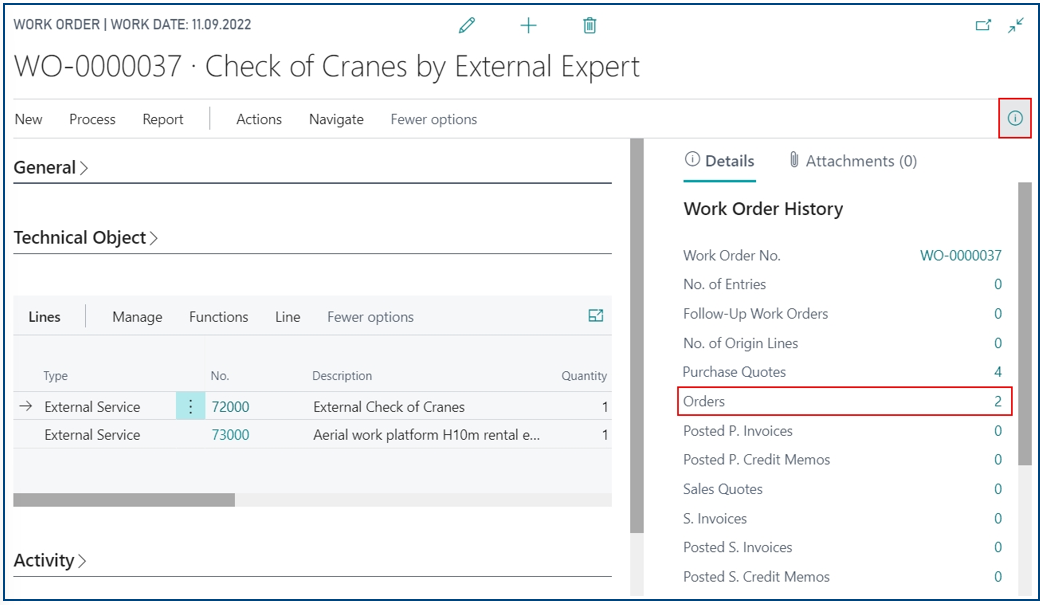

To view the Operations/Documents related to the work order, the “Work Order History” info box can be displayed by clicking on the info box button (check personalization if necessary).

2024-11-26 16_54_16-WOM16 Manual - Creating a Purchase Order from a Work Order BC18 - Geschützte A.png

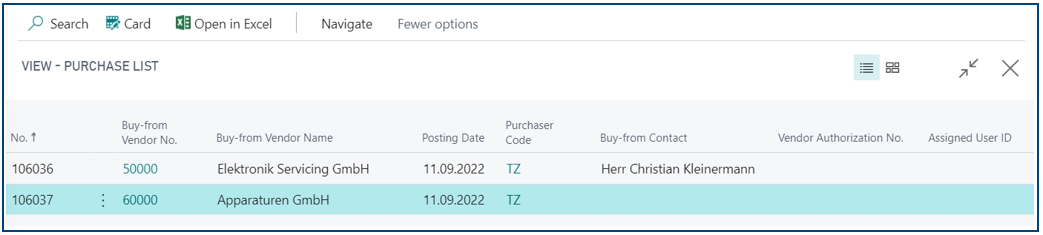

By clicking on the number behind “Orders”, the list of the related Orders (“View – Purchase List”) can be opened. To view a quote, it can be opened after marking the line and clicking on “Card”.

2024-11-26 16_54_37-WOM16 Manual - Creating a Purchase Order from a Work Order BC18 - Geschützte A.png

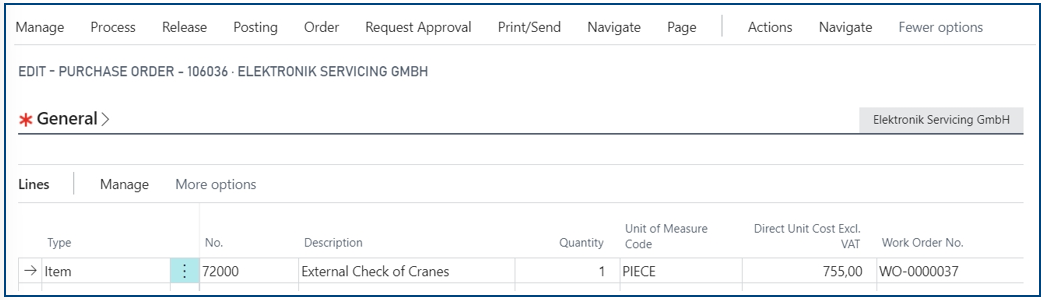

The link to the work order can be checked in the lines of the quotation:

2024-11-26 16_55_03-WOM16 Manual - Creating a Purchase Order from a Work Order BC18 - Geschützte A.png
